Socket Weld Fittings & Forged Screwed Fittings Dimensions

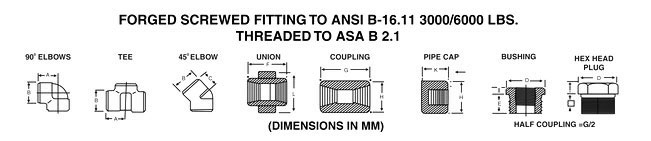

Forged Screwed Fittings to Ansi B-16.11 3000/6000 Lbs / Threaded to ASA B 2.1 Elbow / Tee Reducer Union, Coupling, Pipe Cap, Bushing, Hex Head Plug Dimensions

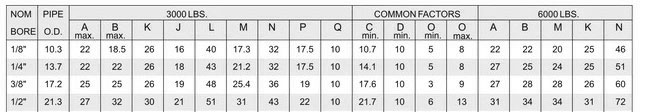

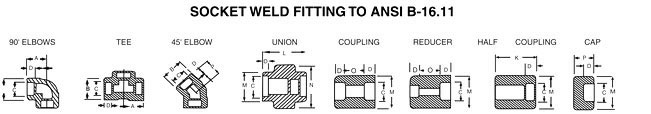

| Socket Weld Fittings to Ansi B-16.11 - 90 deg Elbow Dimensions, Tee, 45 deg Elbow, Union Dimensions Coupling, Reducer, Half Coupling Dimensions & Pipe Cap Dimensions |
 |
 |
 |

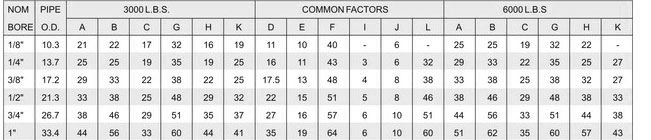

| Forged Screwed Fittings to Ansi B-16.11 3000/6000 Lbs / Threaded to ASA B 2.1 Elbow / Tee Reducer Union, Coupling, Pipe Cap Dimensions, Bushing Dimensions & Hex Head Plug Dimensions |
 |
 |
 |
